Fire Resistance Insulated Panels
FIWall i380 Authentic PIR
Insulated Panels, Fire Resistance, Smokeless

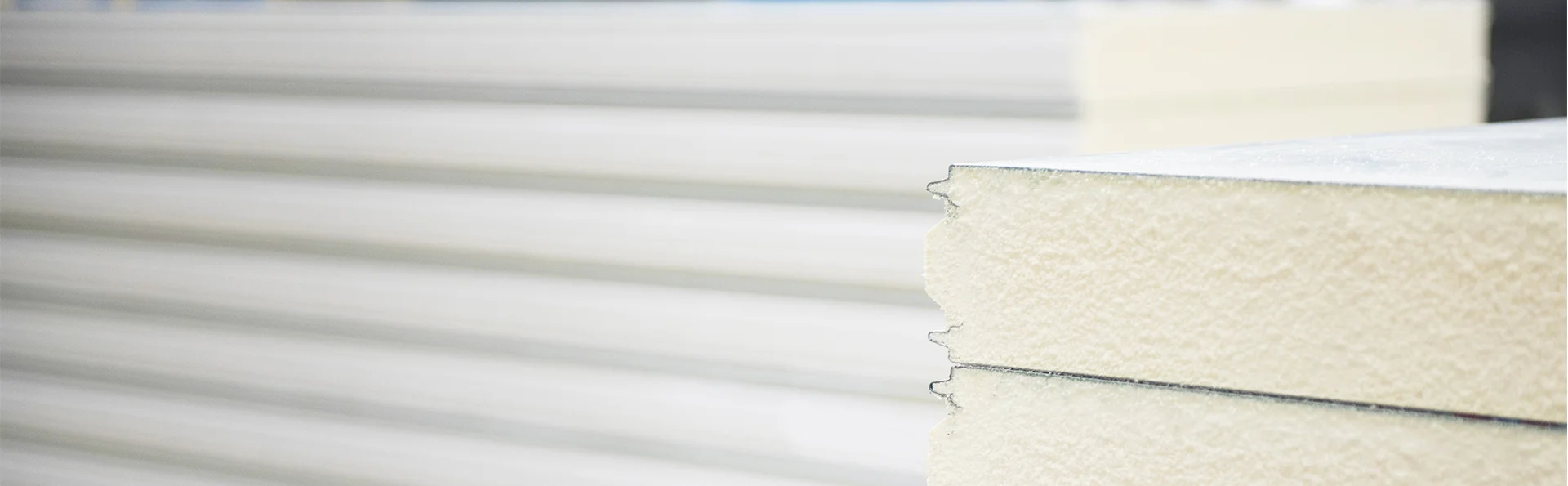

FIWall i380 PIR Insulated Panel
FIWall i380 Authentic PIR by Wall Tech
PIR Insulated Panel model FIWall i380, heat-resistant foam wall panel, fire resistance, smokeless, produced by the state of the art Fully Automatic Continuous Injection Machine from Germany, entirely controlled by computer system. FIWall i380 provides world-class quality of authentic PIR (Polyisocyanurate) with thermal insulation, fire proof and more.
In addition, Wall Tech uses premium chemicals from Germany under close attention to production process, handling, transportation and storage to produce authentic PIR insulated panel with Index higher than 350.
We have been granted several world-class certification such as, but not limited to, BS476 Part 20 & 22, FM Approvals Class: 4880, 4881, 4882 emphasize confidence in FIWall products. ZIP-LOCK innovation enhances strong panel joint locking system with 9 cm. steel joint length. Installed panels are in precise position with durability to accommodate room operating temperature control.
imitation of EPS Foam and PU Foam That Entrepreneurs May Not Know.
- Lower insulation value than PU (Polyurethane) foam or counterfeit PIR.
- High water absorption. Short lifespan.
- When catches fire, produces fire droplet, spreads fire, damages structure and causes building collapse.
with a fire protection Index < 350
- Lower insulation value than PIR (Polyisocyanurate) Foam.
- Higher water absorption value than PIR (Polyisocyanurate) Foam.
- When catches fire, PU produces thick black smoke, causes death from suffocation.
- Ignites fire, spreads fire, causes severe damage.

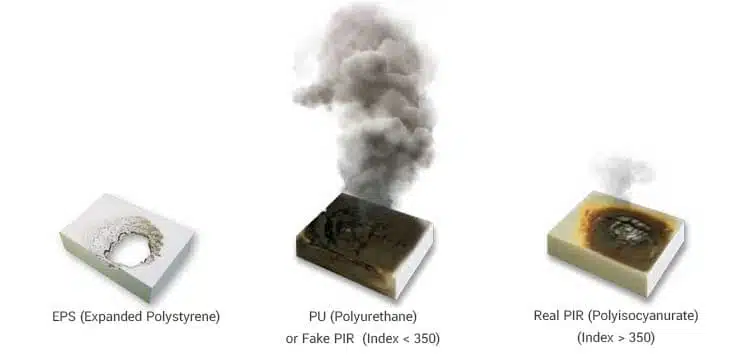

FIWall i380, Authentic PIR by Wall Tech, With Fire Protection Performance Superior to EPS Foam and PU Foam
International Standards and Certificates
FIWall i380, authentic PIR thermal insulation panel by Wall Tech.
Wall Tech offers FIWall i380, insulated panel, innovated to prevent damage to your lives and property. Premium properties of thermal insulation, fireproof, smoke lessness and durability. FIWall i380, authentic PIR insulated panel with high Index 370, be smart choice of panel that can keep you safe from fire.
PIR Insulated Panel – Fire Test by WALL TECH || EP.05
Believe it or not! More than 90% of factories in Thailand are more at risk of fire than you think! If fire accident occurs, high risk to property, cold room, processing room, clean room or warehouse Including machines, raw materials, products and lives of employees. They are all important resources that should not be damaged. What kind of insulated panels that can actually protect lives and property from fire? Let's take a good look. Which type of insulation panel can effectively prevent fire spread to rightly choose thermal insulation panels that make investment worthy.
FIWall i380, PIR Insulated Panel, Heat-Resistance, Fire-Resistance
Available both flat and rib surfaces.
Width : 1,100 mm.
Length: customized length
Thickness : 50 mm., 75 mm., 100 mm., 125 mm., 150 mm., 200 mm.
Standard width: 1,000 mm.
Standard thickness: 50 mm., 75 mm.
Length: customized length
FIWall i380 PIR Board, Thermal Insulation Floor Panel
Standard Width: 1,200 mm. x 3,000 mm.
Standard thickness: 50 mm., 75 mm.
Authentic PIR, FIWall i380 Has Excellent Thermal Insulation Values with Low Thermal Conductivity and Heat Transmission.
Thermal conductivity of PIR FIWall i380: 0.021 * W/mK.
Thermal Transmission (U-Value) and Thermal Resistance (R-value) are as follows:
PIR Foam, Has Lowest Water Absorption
compare with EPS Foam and PU Foam

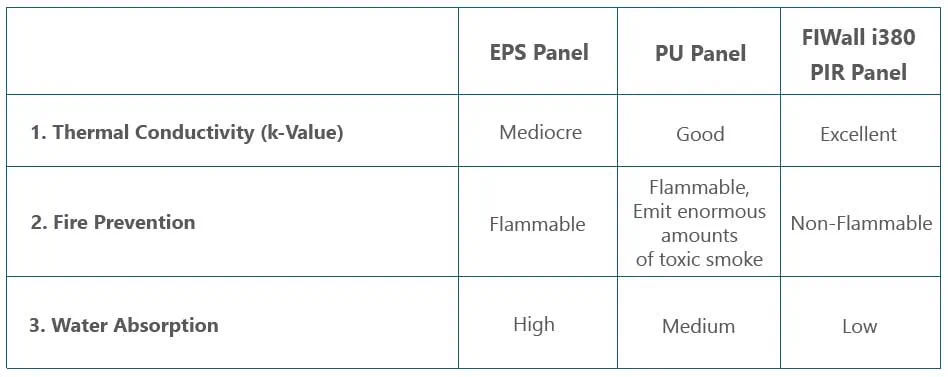

Comparison Between FIWall i380 Authentic PIR
by Wall Tech, with EPS Panel, PU Panel
Choices of Panel Thicknesses to Suit Your Need
N-Pentane, an Environmental Friendly Blowing Agent.
- Hydrocarbon compound
- An organic substance found in nature.
- It is used as a substitute for chlorofluoride carbon compounds.
(Causes global warming and destroys the Earth’s o-zone layer) - Environmentally friendly and does not cause harm to nature.
of experience in insulated panel industry. Consultancy and Inquiry here.
