Certificates
Product Certificates

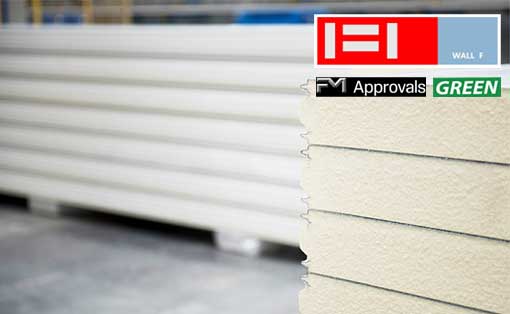

FIWall PIR Panel by Wall Tech

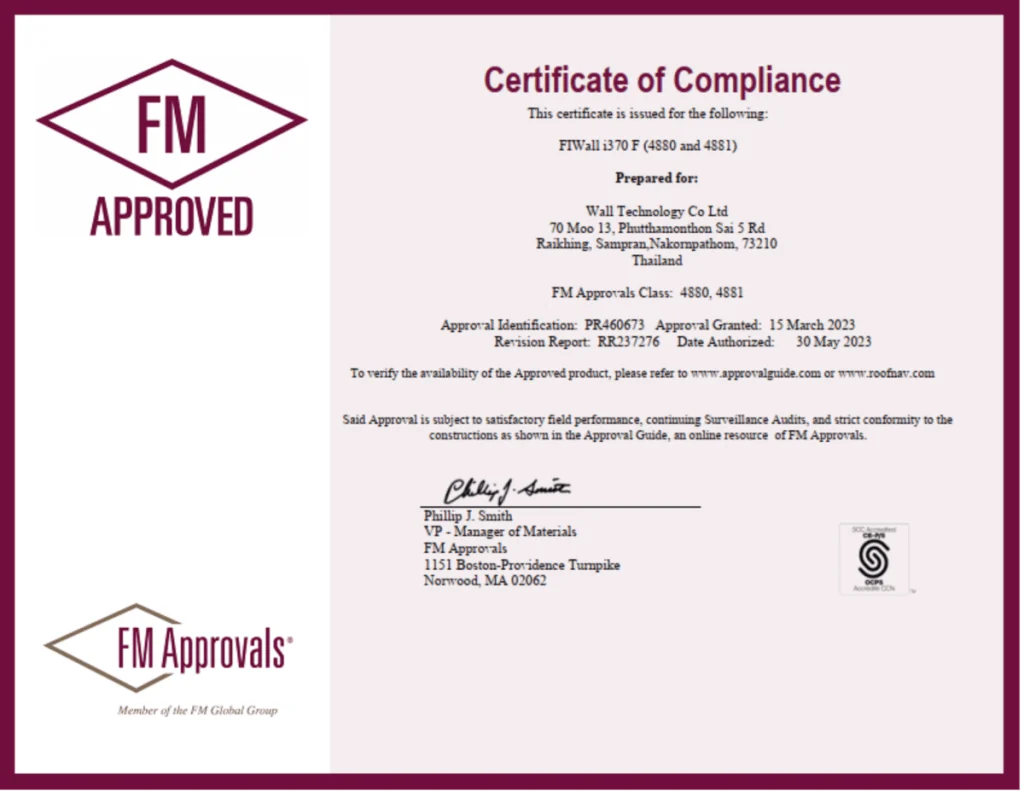

FM 4881 is resistant to the environment and wind.

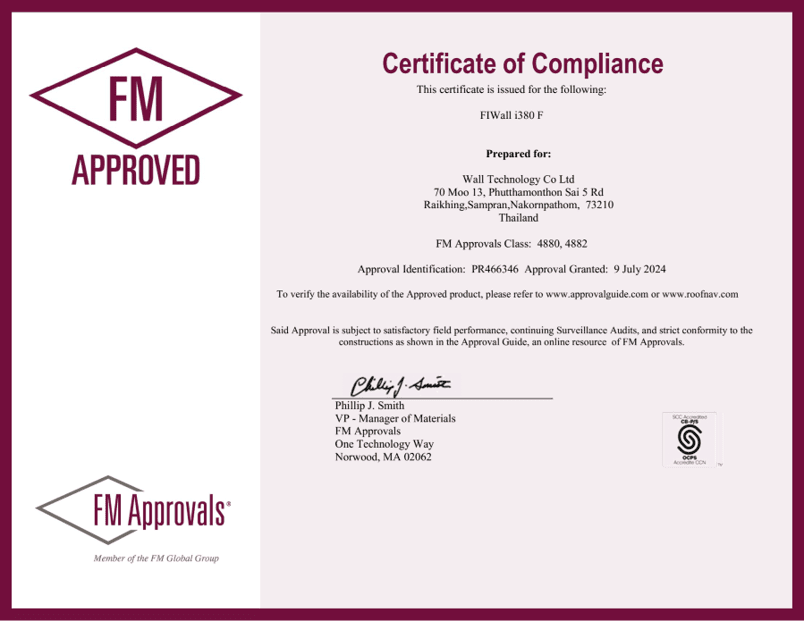

FM 4882 emits little smoke. Safe for life and property

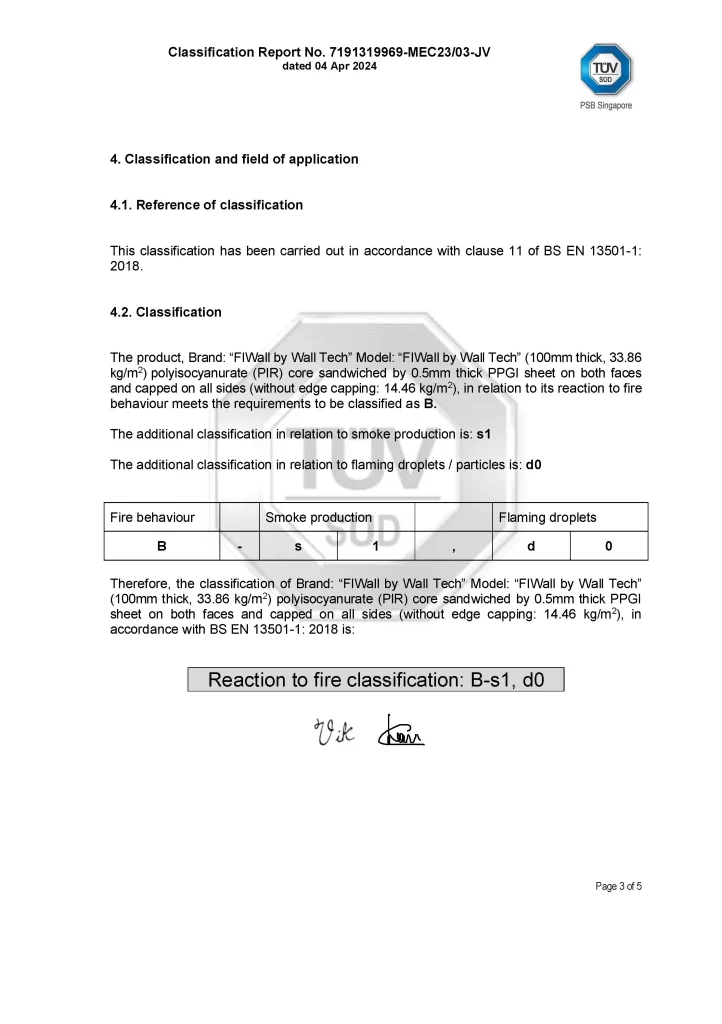

Tested to BS EN 13501-1 standards.
Level: Class B-S1-d0
Difficult to ignite, little smoke,
no
fireball droplets.

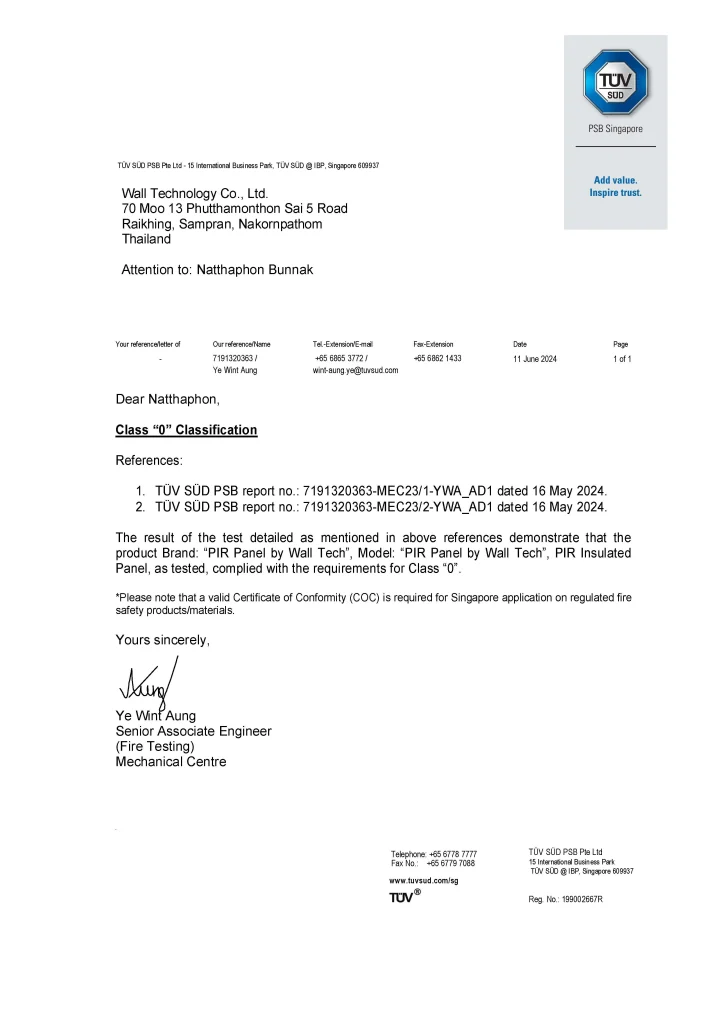

Passed standard tests
BS 476 parts 6 &7
There was no spread of fire.

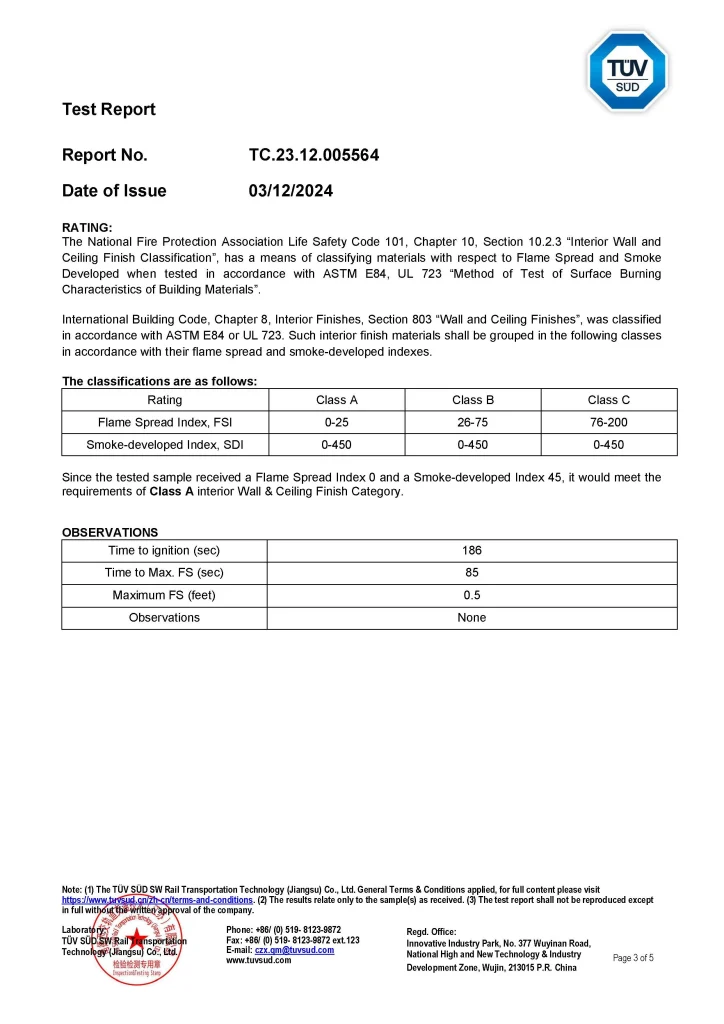

Passed the ASTM E84 standard test.
Class A is the best.
No fire spread and little smoke.
Fire Resistance Insulated Panel Authentic PIR FIWall i380 by Wall Tech
Passed the fire resistance test of BS 476 Part 20 & 22.
Can last more than 4 hours.
WALLROC Rockwool Panel by Wall Tech
Fireproof Insulated Panel Rockwool WALLROC by Wall Tech

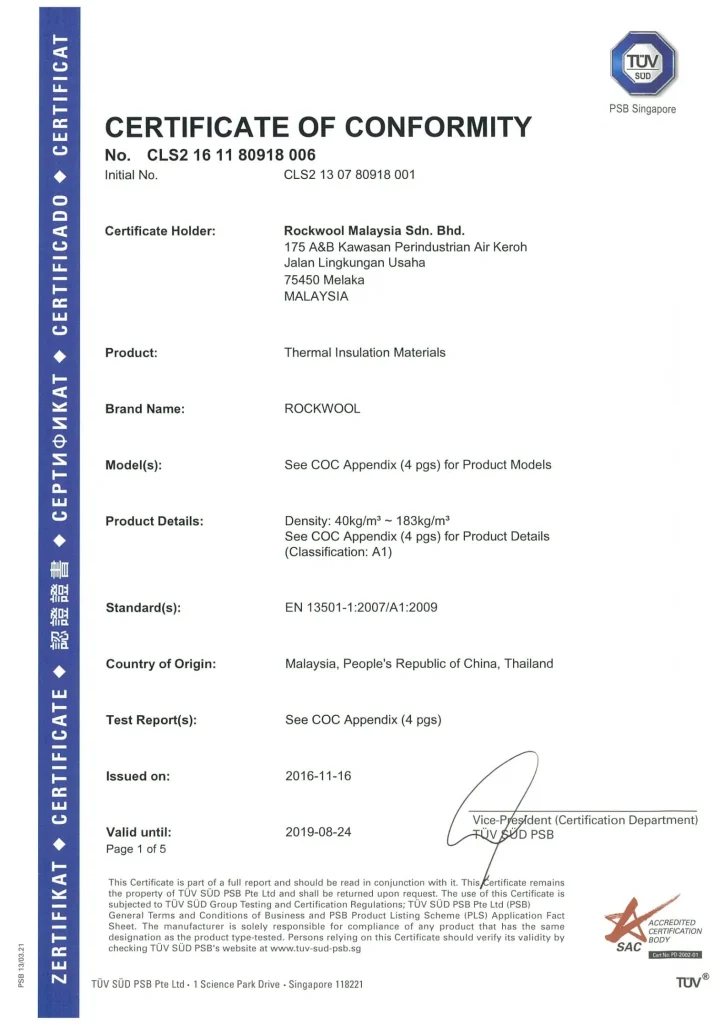

Tested to BS EN 13501-1 standards.
It is at Class A1 level.
The material is not
combustible.
Fireproof Insulated Panel Rockwool WALLROC by Wall Tech
Fireproof Insulated Panel Rockwool WALLROC by Wall Tech

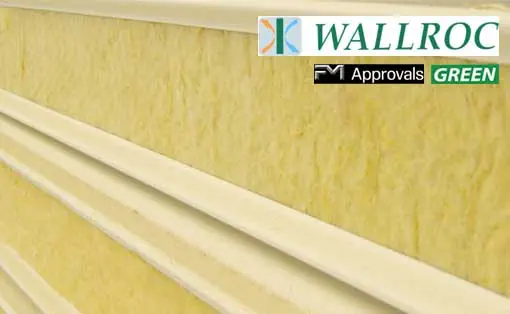

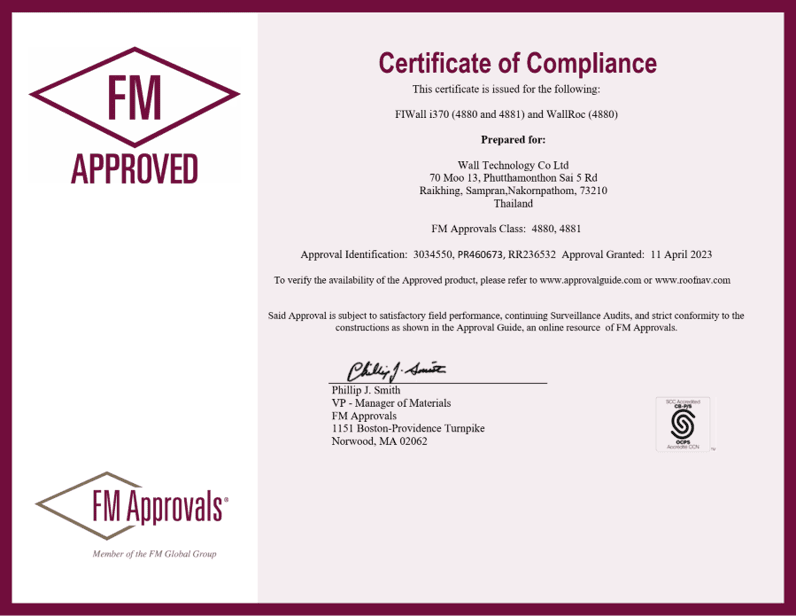

Passed the FM 4880 standard test.
Fireproof Insulated Panel Rockwool WALLROC by Wall Tech

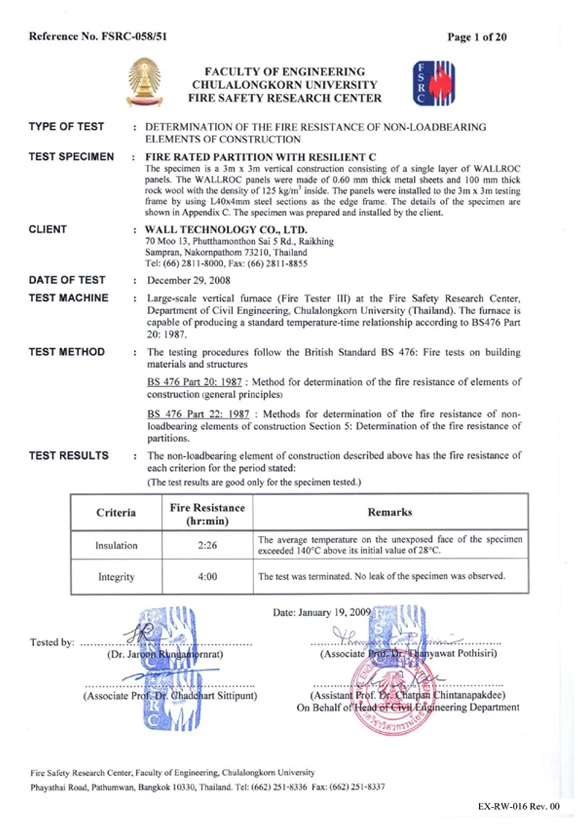

Passed the fire resistance test of BS 476 Part 20 & 22.
Can last more than 4 hours.
Fireproof Insulated Panel Rockwool WALLROC by Wall Tech

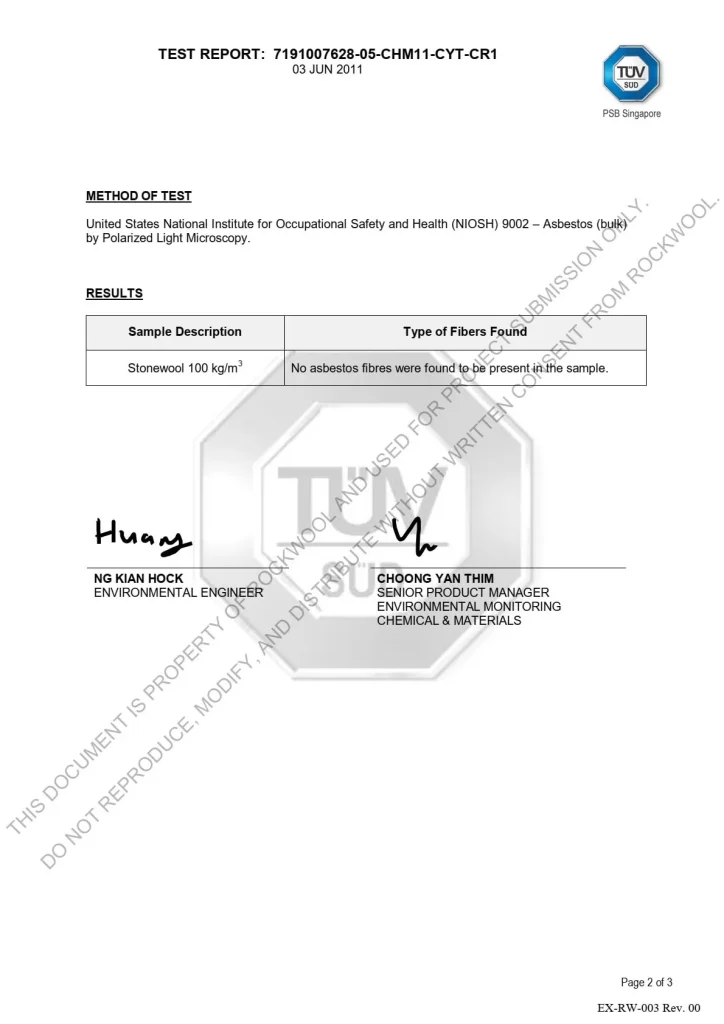

Passed testing standards
“Non asbestos”
and does not cause cancer Safe
for health
What is FM Approvals?
FM Approvals is an institute that specifically certifies fire protection of Building Material products. This institute is based in America and is an institute that is accepted around the world.
FM 4880 is a fire resistance certification standard. For construction materials inside buildings, including walls, ceilings, and roofs, Sandwich Panels certified in FM 4880 have properties that are resistant to fire and the spread of fire.
FM 4881 is the certification standard for exterior wall materials for buildings. that are exposed to harsh natural environments (such as wind, hailstorms, and wind-blown debris). Sandwich panels certified in FM 4881 will have fire-resistant properties. and environment Can be used as an exterior wall of a building. To pass this standard, you must pass FM 4880 first.
FM 4882 is a standard for certification of wall and ceiling materials within buildings. Emphasis is placed on smoke control. Sandwich panels that pass this standard emit much less smoke than general construction materials in the event of a fire. The highlight is preventing the spread of fire. and reduce damage to life and property from smoke and fire. To pass this standard, you must pass FM 4880 before.
BS EN 13501-1 is a material classification standard. according to ignition behavior By evaluating from ignition spread of fire and smoke generation
BS 476 Part 6 and Part 7 are standards for grading materials according to their ability to spread flames. The best level of this test is Class 0.
ASTM E84 is a standard for certifying the flame spread of material surfaces and the amount of smoke that arises from the combustion of materials. The best level of this test is Class A.
What is British Standard 476 Fire Tests (BS-476)?
Standard: BS476-20:Fire testing of building materials and structures.
Standard: BS476-22: Fire resistance tests on building materials and structures.

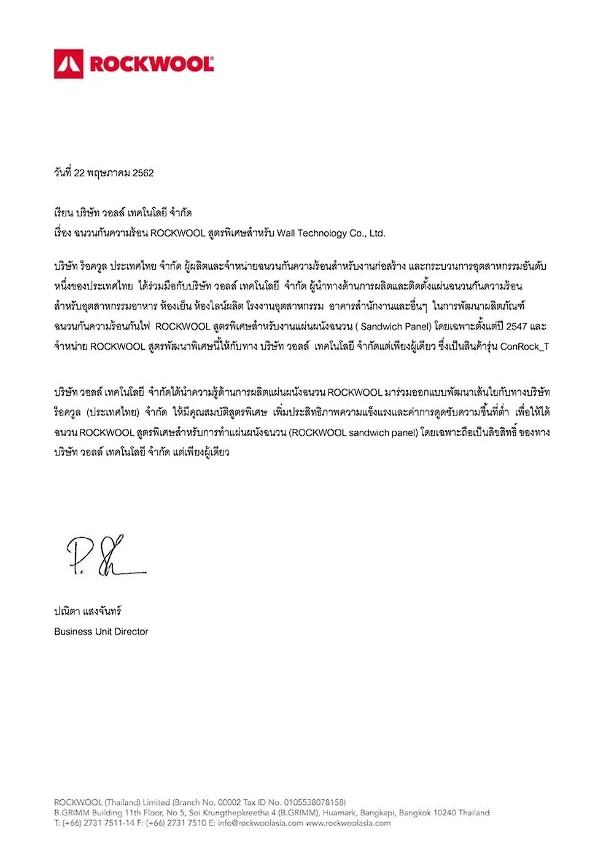

Wall Tech invented, produced and developed Rockwool fibers, specially formulated by experts.
We cooperate with the world's leading manufacturer of asbestos fibers, Rockwool. Developed a special fiber formula for WALLROC, especially Rockwool insulation, a special formula copyrighted the only one by Wall Technology Company Limited .
EPS Food Grade Panel by Wall Tech
EPS Food Grade Insulated Panel by Wall Tech
Uses 100% Virgin foam beads, not recycled.
make it have outstanding features
Thermal conductivity conductivity) low
Low water absorption value
Long service life.
EPS Food Grade Insulated Panel by Wall Tech

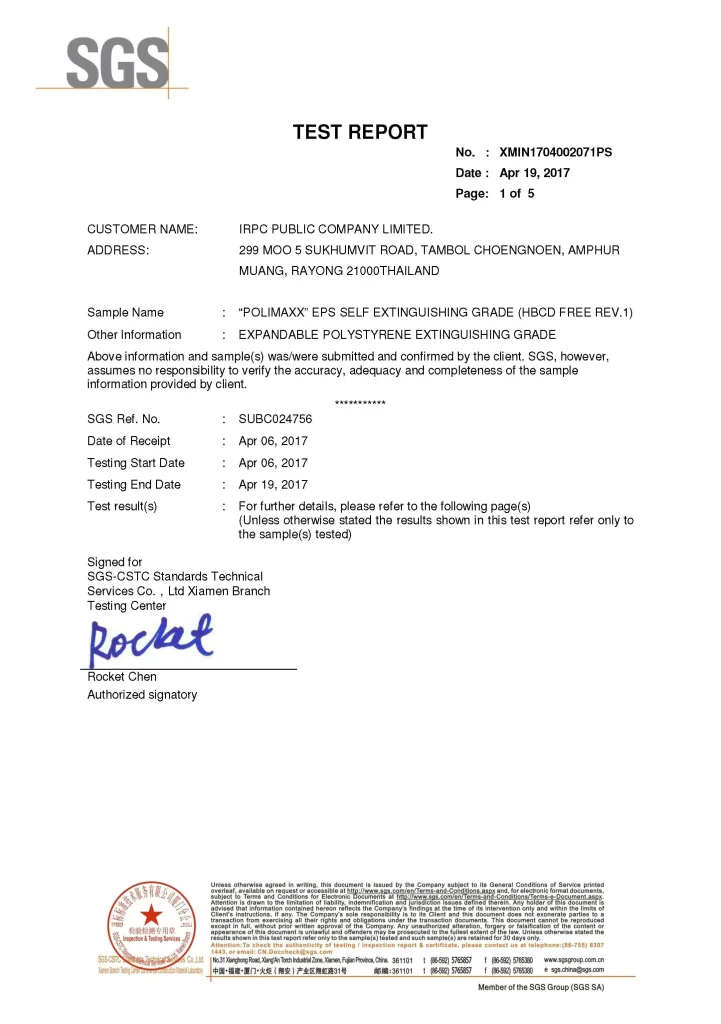

Passed standard tests DIN 4102
At the Class B1 level
It is a difficult combustible material.
No fire spread

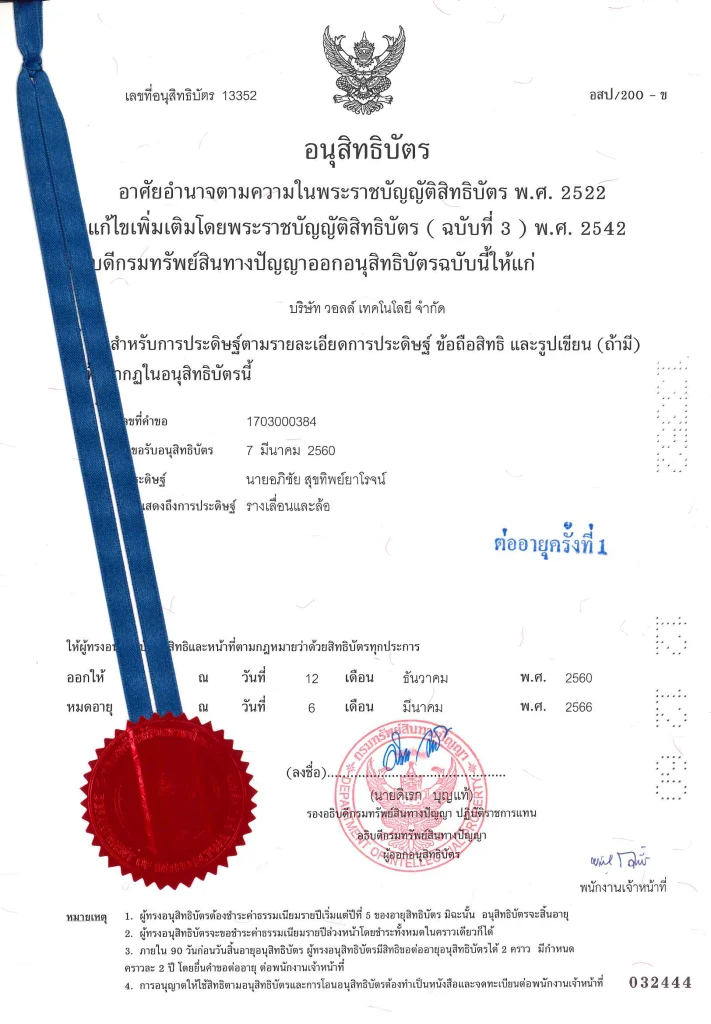

Petty Patent
Cold room door by Wall Tech. Hygienic smooth & silent. Develop the ultimate innovation. Prefabricated cold room doors
Both sliding tracks and special wheels help to operate smoothly - up to 50% easier than general cold room door.
For cold room production line door. Food production lines or warehouses.
The most suitable for use in every industry.
New innovation of world-class quality cold storage doors. that has been developed to have a smooth sliding rail and wheel system Convenient, does not require effort to open and does not make noise during use. At a price that is 30% cheaper than imported cold room doors.

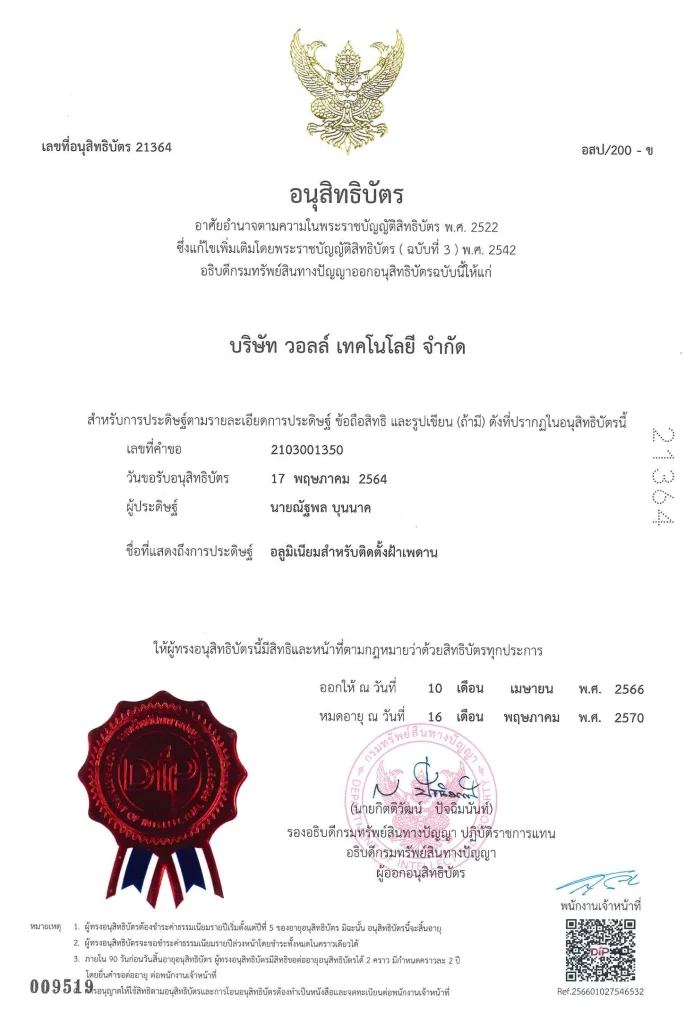

Wall Tech has received a petty patent on aluminum for the correct installation of insulation panels and ceilings.
Made from high quality aluminum, strong, durable, lightweight, coated with a powder coating system for closing joints between insulating panels. Screw marks or rivets (Non rivet found system) reduce the accumulation of fungi and bacteria. Prevents moisture from leaking into the insulation panels. Helps extend the life of the insulation panels even longer.
